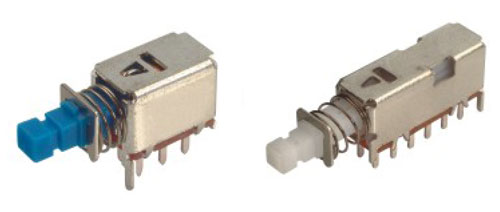

• Pole-Position：1P2T,2P2T,4P2T,Momentary
and Lock Type are available • Contact Rating：30VDC,0.3A;30VDC,1A
• Contact Resistance：50mΩ Max.1.5VDC;100mA,
By Method of Voltage DROP • Insulation Resistance：100MΩ Min,500VDC
• Dielectric Strength：Breakdown is not Allowable;
500VAC for 1 minute • Operation Force：1P2P-200±150gf;
2P2T-300±150gf; 4P2T-300±150gf • Operation Life：10,000 cycles
• Operation Temperation：-20℃ ~70℃
• Total Travel：2.5±0.3mm
|
 |
   |
| Part Number | Contact Rating | Contact Resistance | Insulation Resistance | Dielectric Strength | Operation Force | Operation Life | Operation Temp. | Total Travel | Download |
|---|---|---|---|---|---|---|---|---|---|
| R0198-B2PN | 30VDC,0.3A;30VDC,1A | 50mΩ Max.1.5VDC;100mA,By Method of Voltage DROP | 100MΩ Min,500VDC | Breakdown is not Allowable;500VAC for 1 minute | 1P2P-200±150gf; 2P2T-300±150gf; 4P2T-300±150gf | 10,000 cycles | -20℃ ~70℃ | 2.5±0.3mm | NULL |
| R0198-B4PN | 30VDC,0.3A;30VDC,1A | 50mΩ Max.1.5VDC;100mA,By Method of Voltage DROP | 100MΩ Min,500VDC | Breakdown is not Allowable;500VAC for 1 minute | 1P2P-200±150gf; 2P2T-300±150gf; 4P2T-300±150gf | 10,000 cycles | -20℃ ~70℃ | 2.5±0.3mm | NULL |
